Electronic Pipeline Technology Products

Products

Electronic Pipeline Technology (EP-Tech)

Providers of equipment for Pipelines and Corrosion Control Engineers. EP-Tech is committed to providing safe and reliable products which meet in all respects the specifications required for corrosion monitoring and control of the highest quality.

Product Catalog

The EP-Tech portfolio features leading-edge pipeline and cathodic protection equipment.

Hexlogger "EPT/HEX-4000"
Hexlogger is the latest in fine GPS Electronic Technology for Pipepeline coating survey. DCVG Surveyor Holiday Detector

Model#:
EPT/HEX-4000

Operation manual »

DCVG Surveyor Holiday Detector
A sophisticated electronic Milli-voltmeter DCVG Surveyor Holiday Detector

Model#:
EPT-4000

Brochure »

GPS Current Interrupter
We have different ranges of GPS Current Interrupters from 15 - 300 AMP GPS Current Interrupter

Model#s:
EPT/CI-15
EPT/CI-25
EPT/CI-50
EPT/CI-100

Brochure »

Soil Test Resistance Meter
A sophisticated electronic digital null meter Soil Test Resistance Meter

Model#:
EPT/124F

Brochure »

High Voltage Holiday Detector
A sophisticated electronic Milli-voltmeter High Voltage Holiday Detector

Model#:
EPT/AC- 16
EPT/AC- 20
EPT/AC- 30

Brochure »

Pearson Coating Test Holiday Detector
A sophisticated electronic receiver with high input resistance that is able to detect low audio AC voltage gradients (ACVG) and provide easy methods of finding any coat defect in a pipeline. Pearson Coating Test Holiday Detector

Model#:
EPT-1000C

Brochure »

Pipe and Cable Locator
A sophisticated electronic receiver that is equipped with a search coil and is able to detect coated pipeline signal for a great distance by using null method theory. Pipe and Cable Locator

Model#:
EPT-1000C

Brochure »

Digital Corrosion Meters

Digital CP Multimeter
The Digital CP Multimeter is used for cathodic protection monitoring, CP Pipeline survey and in the field. Digital CP Multimeter

Model#:
EPT/LC-200

Brochure »

Digital CP Voltmeter
The Digital CP Voltmeter is suitable for measuring pipe to soil potential of buried pipelines or other metallic structures. Digital CP Voltmeter

Model#:
EPT/DPM-20

Brochure »

Pipe and Cable Locator

A sophisticated electronic receiver that is equipped with a search coil and is able to detect coated pipeline signal for a great distance by using null method theory...

Product Overview

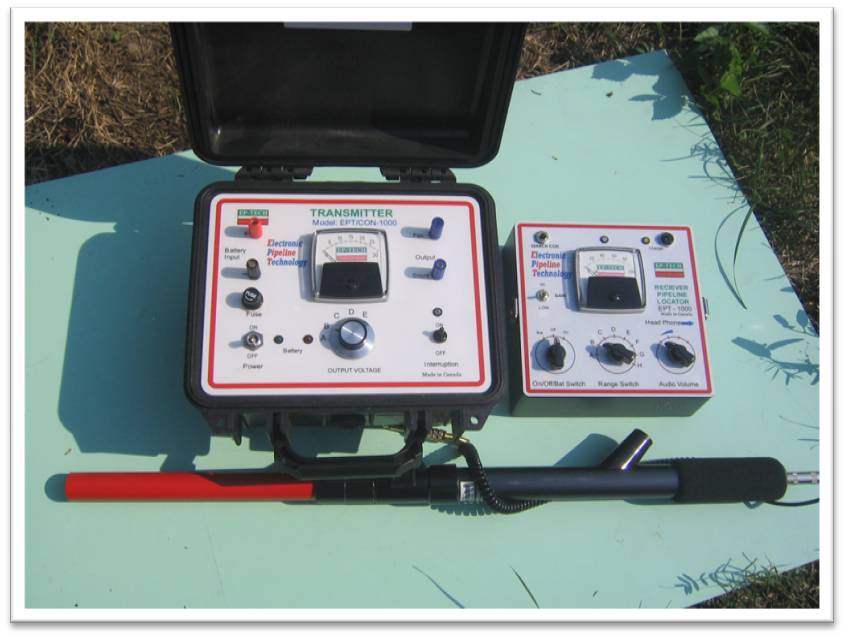

Pipe and Cable Locator

Model: EPT-1000

Typical Applications

It is a sophisticated electronic receiver that is equipped with a search coil and is able to detect coated pipeline signal for a great distance by using null method theory. Transmitter conductively connected to the pipe by a remote ground and equipped with Interruption mode to eliminate noise and stray currents. The Transmitter has different output levels to match the impedance to all soil conditions. Pipe and Cable Locator

Technical Information and Features

  • Crystal Controlled Oscillator
  • Equipped with Analog Meter and Audio Alarm
  • Dual transmitter frequency 745 HZ and 4Hz to eliminate external interference
  • Automatic Excellent Sensitivity
  • Ability to measure depth of pipelines
  • Simple and highly accurate
  • Rechargeable Nickel Cadmium Batteries with Switching Power Supply Charger
  • Stabilized and filtered
  • Low consumption rate
  • Temperature Frequency Stabilized
